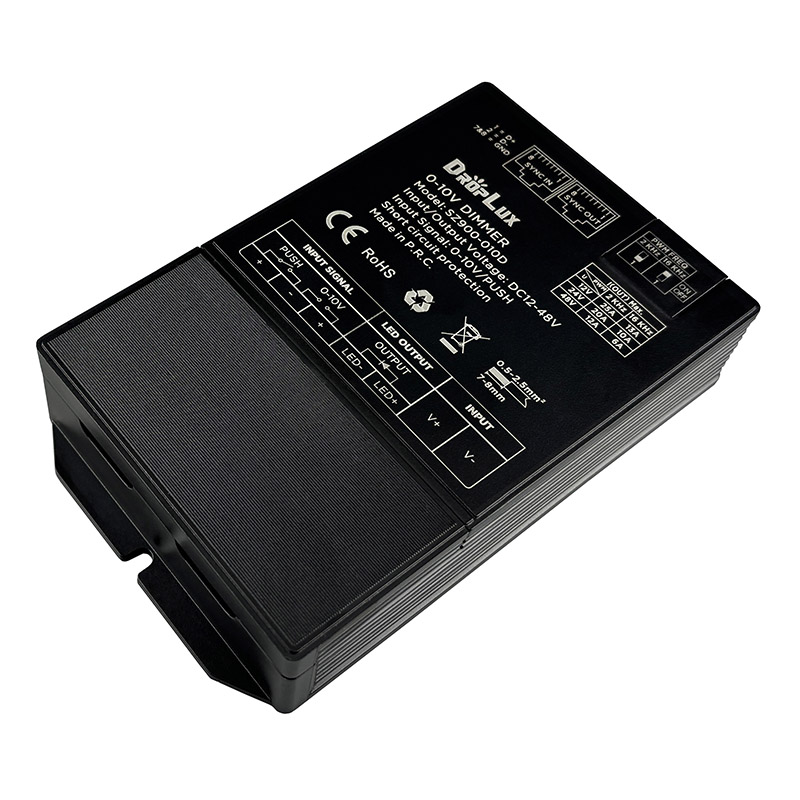

HX-SZ900-010D
-
Product Introduction:
HX-SZ900-010D adopts two control methods, 0-10V and PUSH, to achieve high-quality dimming function; At the same time, the dimmer also has RJ45 synchronous network ports, which can achieve wired synchronous changes of multiple dimmers.
Product Details
Product Feature
Technical Parameters
Dimensions
Interface Specifications
1. Green indicate light
1) After power on, it will light up for a few seconds and then turn off;
2) When connecting the network cable and acting as a slave, it will continuously flash;
3) When operating 0-10V and PUSH signal, the indicator light will light up;
2. DIP switch for PWM frequency setting.
Important: the Max. output currents are different according to the different PWM frequency, please make sure the over loading is not occurred.
3. Dim function
This product supports 0-10V dim and PUSH dim, and can be used in combination.
PUSH dim：Short-pressing for ON/OFF; long-pressing for dim function.
Typical Applications

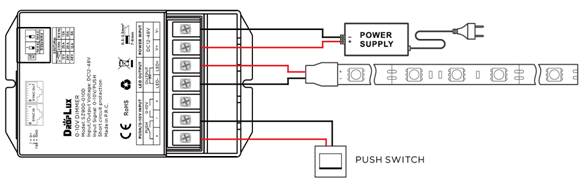

Application circuit 1: PUSH dim connection
Application circuit 2: 0-10V dim connection
Application circuit 3: multiple dimmers sync-dim via 0-10V, each unit can be independently controlled through PUSH mode at the same time.
Application circuit 4:
1) Multiple 0-10V synchronous dimming devices, combined with network port synchronization function, achieve more flexible installation (the network port synchronization distance between every two devices can reach 80 meters).
2) In this application, PUSH dimming acts independently on the connected devices or subsystems.
Tips: When acheieve the sync-dim via the RJ45, any device can be used as the master (the first device in the subsystem will automatically default to be the master). The master is controlled by 0-10V signals and PUSH signal, while other slaves are only controlled by the synchronization signal from the master.
Application circuit 5: sync-dim via RJ45
Tips: The device located in the first position is automatically be the master, which is controlled by 0-10V signals and PUSH signals. The slave units are only controlled by the synchronization signal of the network cable from the master, achieving overall synchronization control.
Product information for placing order
- 0-10V dim and PUSH dim 2 in 1.
- PWM frequency is settable, 2KHz~16KHz.
- Input DC12-48V, Max. output current 1 * 25A, Max. load is 300W/12V, 480W/24V, and 576W/48V;
- With RJ45 synchronous network ports, which can achieve wired synchronous changes of multiple dimmers by flexible connection.
- Short-circuit protection.
- Memory function.
- 3-year warranty.
Technical Parameters
| Working temperature | 0-45℃ | Supply voltage | DC12-48V |
| Output | 1 channel | Static power consumption | <1W |
| Dimming range | 0-100% | 0-10V signal consumption | 0.1mA |
| Net weight | 125g | External dimension | L115*W70*H24 mm |
| Gross weight | 140g | Packing size | L120*W75*H30 mm |
| Short-circuit protection | Yes | Control standard | 0-10V and PUSH |
| Memory function | Yes | PWM frequency | 2KHz (factory default)/16KHz |
| Max. output current/power |
PWM=2KHz: 1*25A/12V/300W, 1*20A/24V/480W, 1*12A/48V/576W PWM=16KHz: 1*13A/12V/156W, 1*10A/24V/240W, 1*6A/48V/288W |
||

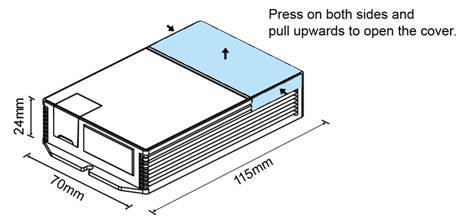

Dimensions

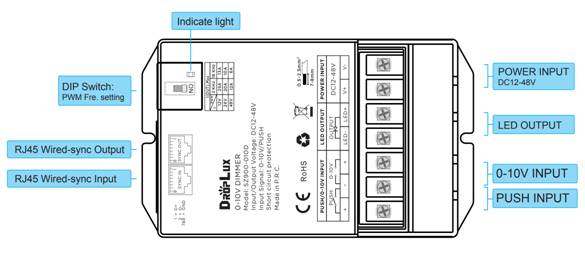

Interface Specifications
1. Green indicate light
1) After power on, it will light up for a few seconds and then turn off;
2) When connecting the network cable and acting as a slave, it will continuously flash;
3) When operating 0-10V and PUSH signal, the indicator light will light up;
2. DIP switch for PWM frequency setting.
| DIP switch | PWM frequency |
| ON | 16KHz |
| OFF (factory default) | 2KHz |
Important: the Max. output currents are different according to the different PWM frequency, please make sure the over loading is not occurred.
3. Dim function
This product supports 0-10V dim and PUSH dim, and can be used in combination.
PUSH dim：Short-pressing for ON/OFF; long-pressing for dim function.
Typical Applications
Application circuit 1: PUSH dim connection

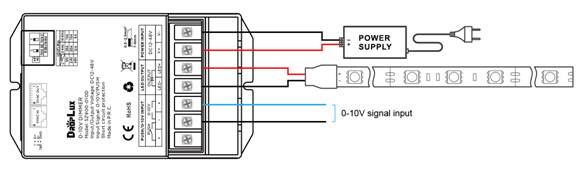

Application circuit 2: 0-10V dim connection

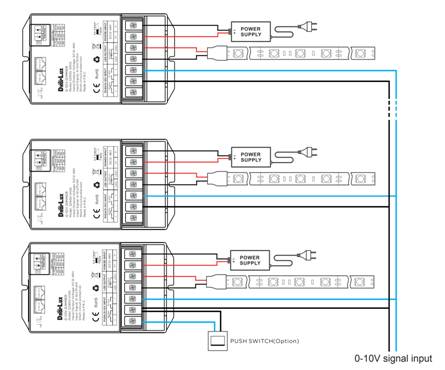

Application circuit 3: multiple dimmers sync-dim via 0-10V, each unit can be independently controlled through PUSH mode at the same time.

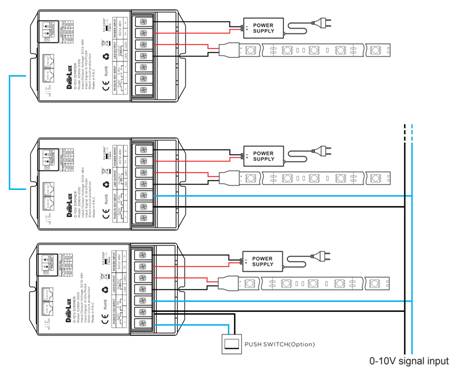

Application circuit 4:
1) Multiple 0-10V synchronous dimming devices, combined with network port synchronization function, achieve more flexible installation (the network port synchronization distance between every two devices can reach 80 meters).
2) In this application, PUSH dimming acts independently on the connected devices or subsystems.
Tips: When acheieve the sync-dim via the RJ45, any device can be used as the master (the first device in the subsystem will automatically default to be the master). The master is controlled by 0-10V signals and PUSH signal, while other slaves are only controlled by the synchronization signal from the master.

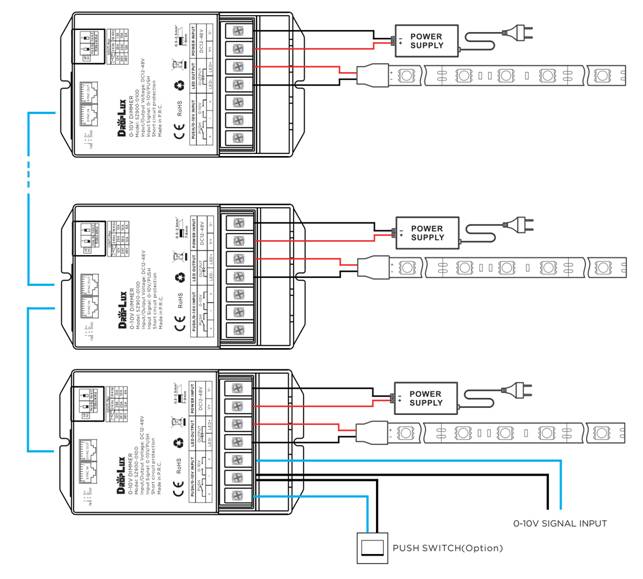

Application circuit 5: sync-dim via RJ45
Tips: The device located in the first position is automatically be the master, which is controlled by 0-10V signals and PUSH signals. The slave units are only controlled by the synchronization signal of the network cable from the master, achieving overall synchronization control.
Product information for placing order
| Product name | Item number |
| LED 0-10V/PUSH Dimmer | HX-SZ900-010D |
