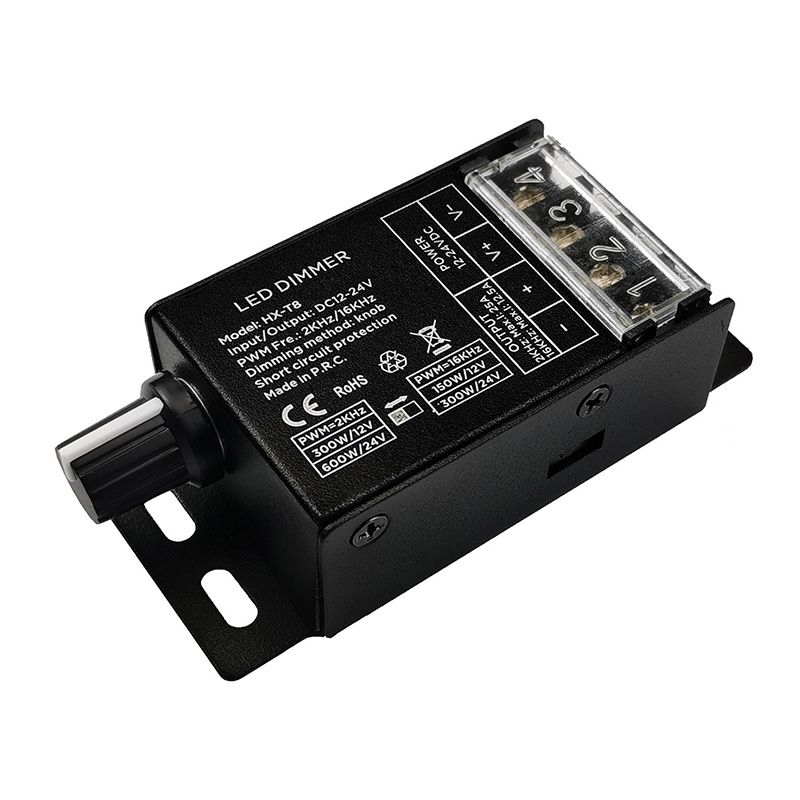

HX-T8
-
Product Introduction:
HX-T8 dimmer adopts knob control manner to achieve stepless and smooth dimming. According to actual needs, users can transfer the light to the appropriate brightness.
Product Details
Product Feature
Technical Parameters
Dimension
Connection port instruction
Typical Applications
Precautions
1.The working voltage is DC12V~24V, and it must not be connected to other voltages;
2.Ensure that the wiring is correct and no short circuit before power-on;
3.PWM dimming frequency is adjustable.The maximum output load power corresponding to different PWM frequencies is different. Please do not overload it.
4.Warranty of this product is 3 years, exclude the artificial situation of damaged or overload working.
Product information for placing order
- Working voltage: DC12-24V.
- Max. output current up to 25A, 300W/12V, 600W/24V.
- PWM frequency is adjustable (2KHz/16KHz).
- Adopt the knob control manner, soft dim function.
- Short-circuit protection.
- 3-year warranty.
Technical Parameters
| Working temperature | -20-60℃ | Supply voltage | DC12-24V |
| Output | 1 channel | Static power consumption | <1W |
| Net weight | 65g | External dimension | L84*W38*H24mm |
| Gross weight | 90g | Packing size | L94*W48*H32mm |
| Control method | Knob | Short circuit protection | Yes |
| Memory function | Yes | PWM frequency | 2KHz(factory default),16KHz |
| Max. output current |
PWM=2KHz: 25A PWM=16KHz: 12.5A |
Max. output power |
PWM=2KHz:300W/12V; 600W/24V PWM=16KH:150W/12V; 300W/24V |
Dimension

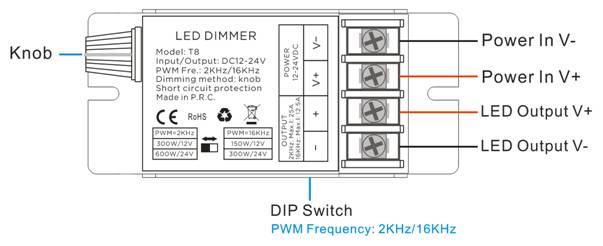

Connection port instruction

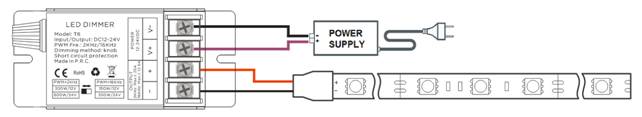

Typical Applications
Precautions
1.The working voltage is DC12V~24V, and it must not be connected to other voltages;
2.Ensure that the wiring is correct and no short circuit before power-on;
3.PWM dimming frequency is adjustable.The maximum output load power corresponding to different PWM frequencies is different. Please do not overload it.
4.Warranty of this product is 3 years, exclude the artificial situation of damaged or overload working.
Product information for placing order
| Product name | Item number |
| RF Single Color Dimmer | HX-T8 |
